Description

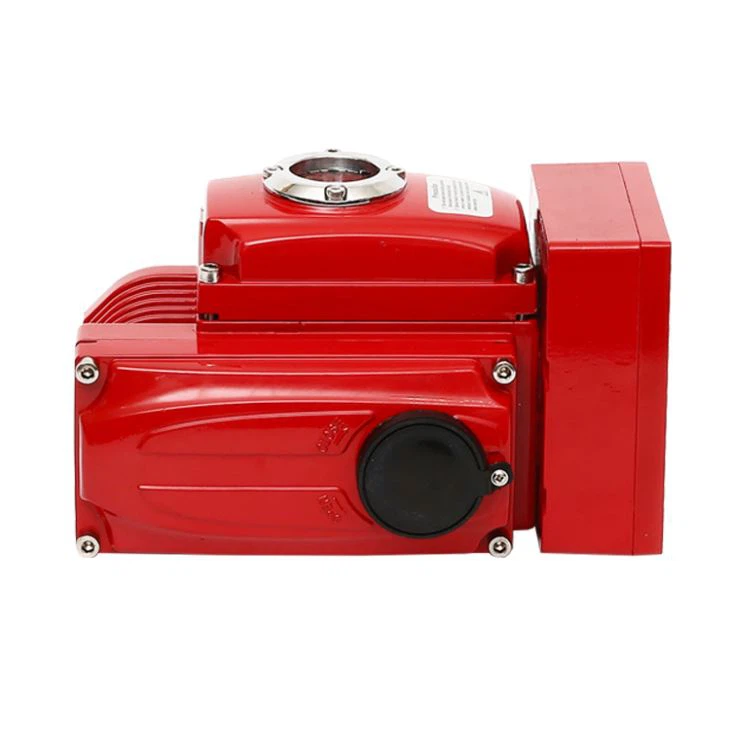

The Electric Rotary Actuator 90 Degrees is a compact, powerful, adjustable drive system with a long service life. The materials selected are suitable for maintenance-free operation as well as for aggressive environments and ensure a low heat load. The modular design offers many options for extending the base unit, such as the use of additional terminal switches, potentiometers, backup power types, and more. The input signal and output signal can be programmed while the drive is being adjusted.

Specification

Model: ODL-003~ODL-200

Torque Range: 30~2000Nm

Motion Range: 0-90°

Ambient Temperature: -30º C~+60º C

Open/Close Time: 5S-40S

Body Material: Aluminium Alloy

Protection Class: IP67,IP68

Voltage: 380V/220V/110V AC power or 24V/110V DC

Type: On-off, Modulating (Regulating), Passive Contact

Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400)

Advantages

The Electric Rotary Actuator 90 Degrees is one of the most common and reliable actuator types. Use a single-phase or three-phase motor to drive the gear or worm gear and finally drive the stem nut. The stem nut moves the stem to open or close the valve. It can quickly drive large size valves. To protect the valve from damage, a limit switch installed at the end of the valve stroke cuts off the motor power. At the same time, when the safety torque is exceeded, the torque sensing device also cuts off the power of the motor. The position switch is used to indicate the switching state of the valve. The hand wheel mechanism of the clutch device can manually operate the valve in the event of a power failure.
