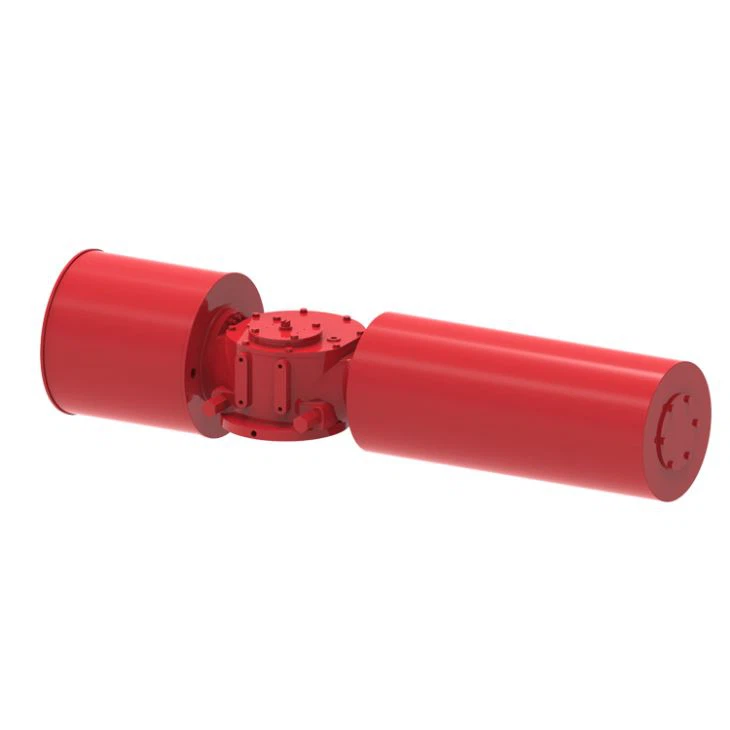

Autorun scotch yoke pneumatic actuator is heavy duty pneumatic actuator for big valves. According to the type of action, it can be divided into single-acting type and double-action type. Double-acting type is when switching action of the actuator is completed by the air source drive. Single-acting type is when only the opening action is driven by the air source, and the closing action is by spring return.

Features

• Large torque

• Wear resistance

• Corrosion resistance

• Manual override options

• ISO 5211 mounting pattern

• Robust yet light weight design

• Female double square output drive

• Double acting and spring return models

• Namur mounting pad for direct mount solenoid valves

• Standard VDI/VDE 3845 mounting for top mount accessories

• High cycle life with low friction bearings on all moving and sliding surfaces

Construction

Specifications

Air supply: 3 bar~6bar

Travel Adjustment: 90° ± 6°

Operating temperature: -20 ~ +80° C

Type: Double acting, Single acting (spring return)

Optional accessories: Manual override, Limit switch box, Solenoid valve, Electro-pneumatic positioner, Air regulator

Application: Either indoor or outdoor

Operation

The compressed air enters the cylinder and pushes the piston to move linearly. The piston through the piston pin and the fork U-shaped groove design converts the linear motion of the piston into the rotary motion of the york, and the rotation of the york drives the output shaft to rotate, thereby realizing the control of the valve.

Options

• Namur solenoid pilot valve

• Open/close monitor limit switch box

• Electro-Pneumatic positioner 4-20m input and output
