Autorun heavy duty pneumatic actuator is a piston-type actuator that is suitable for switching off or proportional control of valves with 90° angles (such as ball valves, butterfly valves, and plug valves). ISO 5211 standards for easy valve mounting and replacement.

Features

• Large torque

• Robust yet light weight design

• Manual override options

• Double acting and spring return models

• ISO 5211 mounting pattern

• Wear resistance

• Corrosion resistance

• Female double square output drive

• Namur mounting pad for direct mount solenoid valves

• Standard VDI/VDE 3845 mounting for top mount accessories

• High cycle life with low friction bearings on all moving and sliding surfaces

Specifications

Air supply pressure: 3 bar~6bar

Travel Adjustment: 90°± 6°

Operating temperature: -20 ~ +80° C

Type: Double acting, Single acting (spring return)

Optional accessories: Limit switch box, Solenoid valve, Electro-pneumatic positioner, Air regulator

Lubrication: All the moving parts are coated with lubricants, extending their service life

Application: Either indoor or outdoor

Operation

The compressed air enters the cylinder and pushes the piston to move linearly. The piston through the piston pin and the fork U-shaped groove design converts the linear motion of the piston into the rotary motion of the york, and the rotation of the york drives the output shaft to rotate, thereby realizing the control of the valve.

Options

• Namur solenoid pilot valve

• Open/close monitor limit switch box

• Electro-Pneumatic positioner 4-20m input and output

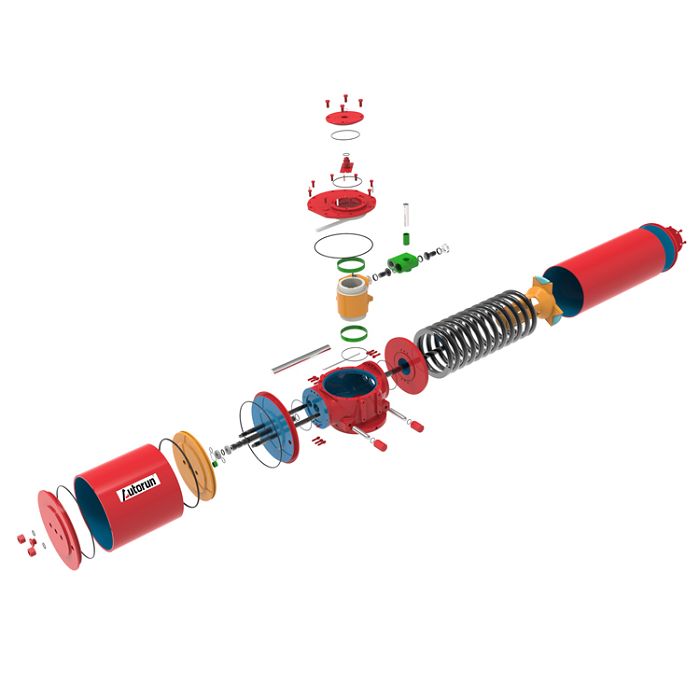

Construction
